ATC Horizontal #50 Chain Type Pocket

Manufactured by

Features

  • Completely Water Proof Arm to prevent entry of coolant into Arm.
  • Gripper is made as a Separate component for Easy changing of Specification between different pockets (BT/CAT/DIN/HSK).
  • Special Design of Rail that overlaps on the wheel to avoid “Chord Raise Effect” and ensure Low Noise and Vibration when the Chain is in Motion.
  • Use a Tool Shifter to shift Tools from Magazine to a standby Pocket. Shifter uses Linear Guides for stable and precise Tool shift.
Make an Enquiry

Description

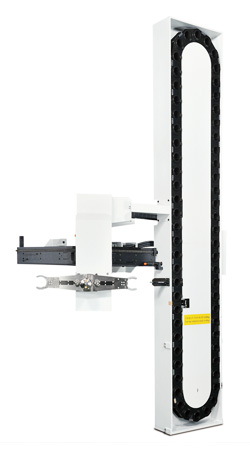

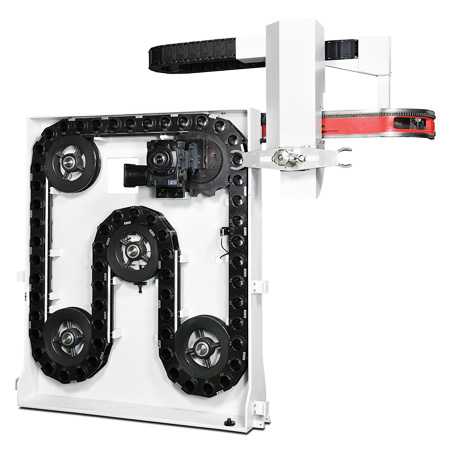

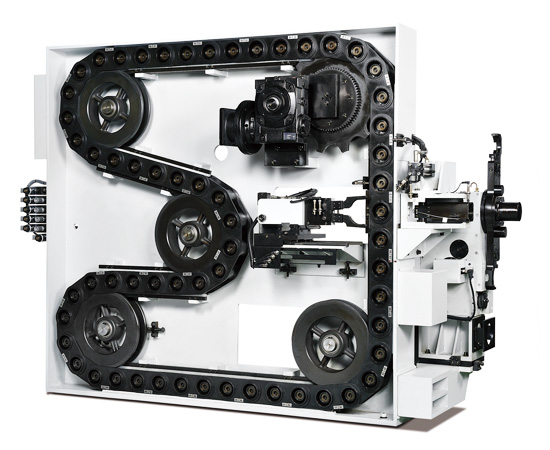

Chain Type Pocket/ Shift Holder/ Standby Pocket Chain Type Pocket/ Rail Type Shifter Mechanism Chain Type Pocket/Arm Type Tool Shifter Mechanism
Pocket Spec #50 BT/CAT/DIN/HSK100
Tool Capacity 40T/60T/80T/90T/100T/120T
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 125/250
Max. Tool Weight kg 20 25 25
Tool Change Time sec/60hz 2.9 3 3
Magazine Speed sec/tool 0.3 0.3 0.3
Tool Management Model Fixed Address
Tool Changing Selection Roller Gear Cam Hydralic Rack and Gear Mechanism Hydralic Rack and Gear Mechanism
