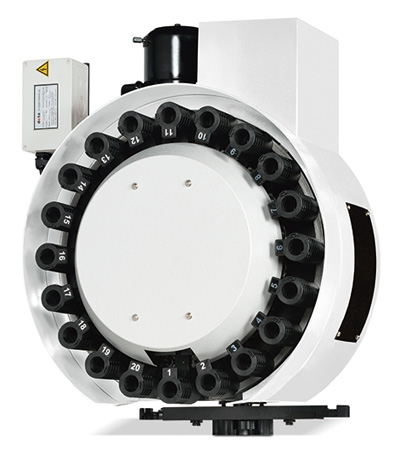

ATC #30 Disk Type

Manufactured by

Features

  • “Anodised – Aluminium Alloy Pocket” with environment friendly.
  • Anti-Rust and High Stiffness.
  • Spring is made from German Piano Wire
  •  Completely Water Proof Arm to prevent entry of coolant into Arm.
  •  Gripper is made as a separate component for Easy changing of Specification between different pockets (BT/CAT/DIN/HSK).
Make an Enquiry

Description

Pocket Spec #30 BT / CAT / DIN
Tool Capacity 16T 20T 20T
Pitch mm 80
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 75 / 150
Max. Tool Weight kg 4
Tool Change Time sec/60HZ 0.8
Magazine Speed sec/tool 0.5
Tool Changing Selection Roller Gear Cam
Reference Machines R3GK4 R3DK4 R3DK4
