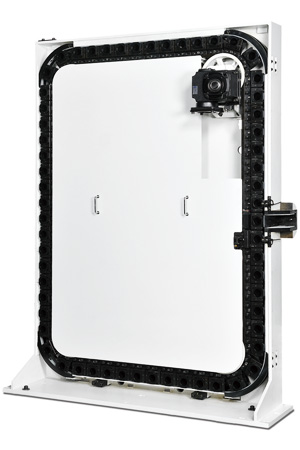

ATC Horizontal #40-Separate Type Pocket

Manufactured by

Features

  • Steel Pocket with High Stiffness.
  • Spring is made from German Piano Wire.
  • Completely Water Proof Arm to prevent entry of coolant into Arm.
  • Gripper is made as a Separate component for Easy changing of Specification between different pockets (BT/CAT/DIN/HSK).
  • Special design of Rail that overlaps on the wheel to avoid “Chord Raise Effect” and ensure Low Noise and Vibration when the Chain is in Motion.
  • Shifter uses Linear Guides and “Rack and Pinion Mechanism” to shuttle the pocket from Chain to the Tool Change Position.
  • The Tool pocket is shuttled from the Magazine to the Tool Change position by a Carriage driven by a Hydraulic Motor on a Rail Guide.
Make an Enquiry

Description

Separate Type Pocket/Pocket Rotate 90゚ Mechanism Separate Type Pocket+Pocket Sliding Mechanism
Pocket Spec #40 BT/CAT/DIN/HSK40/HSK50/HSK63
Tool Capacity 40T/60T 40T/51T/60T
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 95/150(40T)
95/190(60T)
95/150(40T)
95/190(51T/60T)
Max. Tool Weight kg 8
Tool Change Time sec/60hz 1.5 1.3~1.5(Servo)
Magazine Speed sec/tool 0.3(Servo)
Tool Management Model Fixed Address
Tool Changing Selection Roller Gear Cam
