ATC #50 Disk Type

Manufactured by

Features

  • “Anodised – Aluminium Alloy Pocket” with environment friendly.
  • Anti-Rust and High Stiffness.
  • Spring is made from German Piano Wire.
  • Completely Water Proof Arm to prevent entry of coolant into Arm.
  • Gripper is made as a separate component for Easy changing of Specification between different pockets (BT/CAT/DIN/HSK).
  • High Quality Cylinder for Stable Pot-Tilting.
  • Uses a Counter Balance Valve to hold Heavy Tools in Upright position.
Make an Enquiry

Description

Pocket Spec #50 BT/CAT/DIN/HSK100
Tool Capacity 20T 24T 24T 30T 24T
Pitch mm 135 110
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 130/255 105/210
Tool Change Time sec/60HZ 2.5
Magazine Speed sec/tool 0.8
Tool Changing Selection Roller Gear Cam

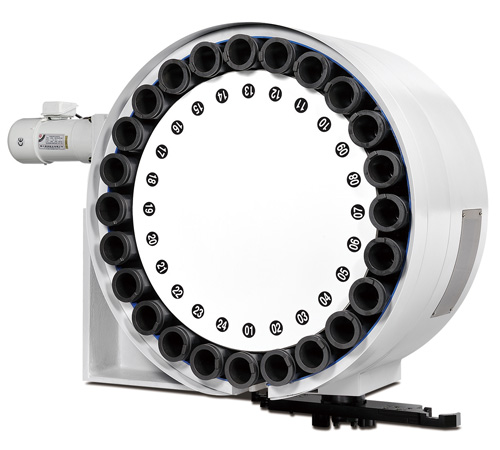

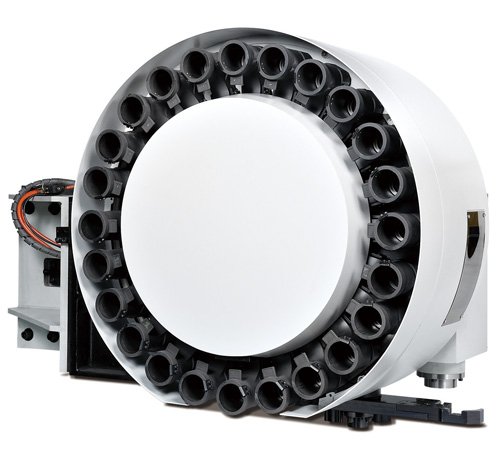

Reference Machines MR5C R5EN MR5D MR5G R5DKA
