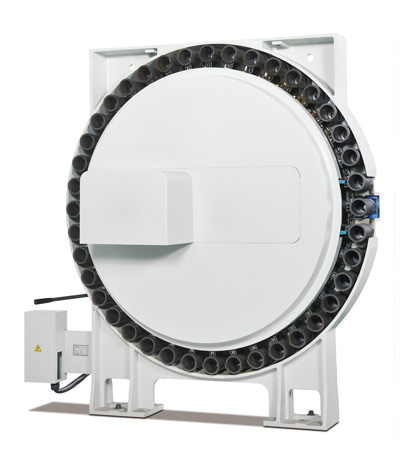

ATC Horizontal #50 Disk Type

Manufactured by

Features

  • “Anodised – Aluminium Alloy Pocket” with Environment Friendly.
  • Anti-Rust and High Stiffness.
  • Spring is made from German Piano Wire.
  • Completely Water Proof Arm to prevent entry of coolant into Arm.
  • Gripper is made as a separate component for Easy changing of specification between different pockets. (BT/CAT/DIN/HSK).
  •  Special design of Tool Extractor for convenient Tool removal.
Make an Enquiry

Description

Disk Type/Pocket Tilt 90゚ Mechanism Big Disk Type/Pocket Tilt 90゚ Mechanism
Pocket Spec #50 BT/CAT/DIN/HSK100
Tool Capacity 24T 40T/50T
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 105/210 110/220
Max. Tool Weight kg 15
Tool Change Time sec/60hz 2.9
Magazine Speed sec/tool 0.8 0.3(Servo)/ 0.8
Tool Management Model Random
Tool Changing Selection Roller Gear Cam
