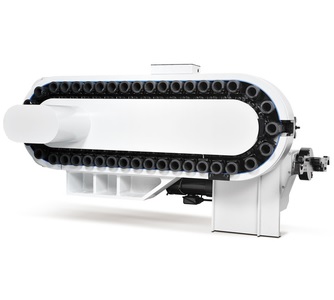

ATC Horizontal #50 Chain Type

Manufactured by


  • “Anodised – Aluminium Alloy Pocket” with Environment Friendly.
  • Anti-Rust and High Stiffness
  • Spring is made from German Piano Wire.
  • Completely Water Proof Arm to prevent entry of coolant into Arm
  • Gripper is made as a separate component for Easy changing of specification between different pockets. (BT/CAT/DIN/HSK).
  • Special design of Rail that overlaps on the wheel to avoid “Chord Raise Effect” and ensure Low Noise and Vibration when the Chain is in Motion.
Make an Enquiry


Chain Type/ Pocket Tilt 90゚ Mechanism
Pocket Spec #50 BT/CAT/DIN/HSK100
Tool Capacity 30T/40T/60T
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 125/229
Max. Tool Weight kg 15
Tool Change Time sec/60hz 2.9
Magazine Speed sec/tool 0.78
Tool Management Model Random
Tool Changing Selection Roller Gear Cam
