ATC Horizontal #40 Disk Type

Manufactured by

Features

  • “Anodised – Aluminium Alloy Pocket” with Environment Friendly.
  • Anti-Rust and High Stiffness
  • Spring is made from German Piano Wire.
  • Completely Water Proof Arm to prevent entry of coolant into Arm
  • Gripper is made as a separate component for Easy changing of specification between different pockets. (BT/CAT/DIN/HSK)
  • Special design of Tool Extractor for convenient Tool removal.
Make an Enquiry

Description

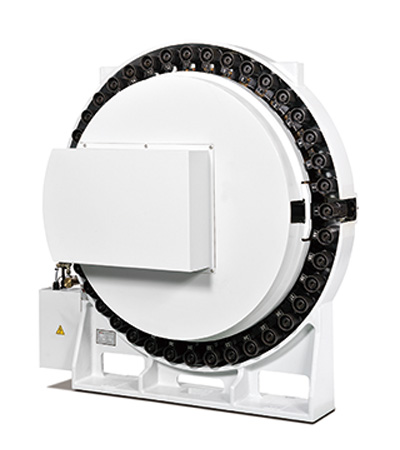

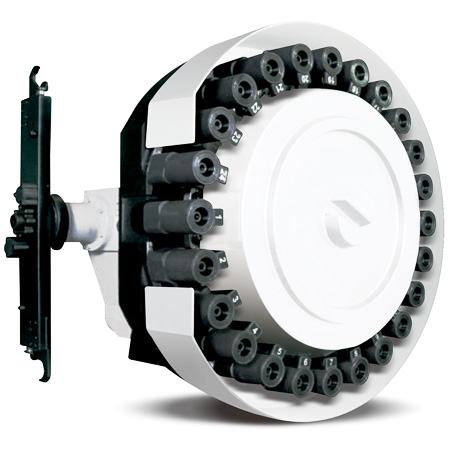

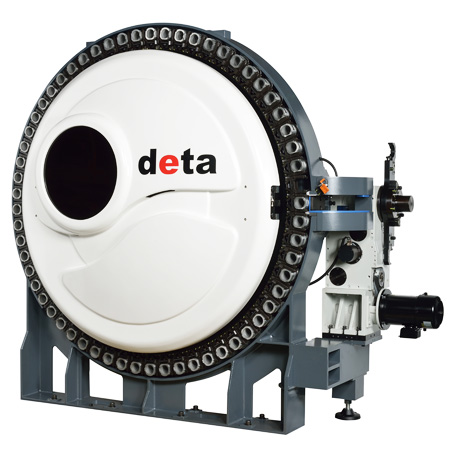

Disk Type/Pocket Tilt 90゚ Mechanism Big Disk Type/Pocket Tilt 90゚ Mechanism
Pocket Spec #40 BT / CAT / DIN / HSK40 / HSK50 / HSK63
Tool Capacity 24T/30T 40T/60T 60T
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 75/150 76 / 150 80 / 150
Max. Tool Weight kg 8 8 10
Tool Change Time sec/60hz 1.5 1.5 1.98
Magazine Speed sec/tool 0.6 0.5(Servo)/0.6 0.15
Tool Management Model Random Random Fixed Address
Tool Changing Selection Roller Gear Cam
