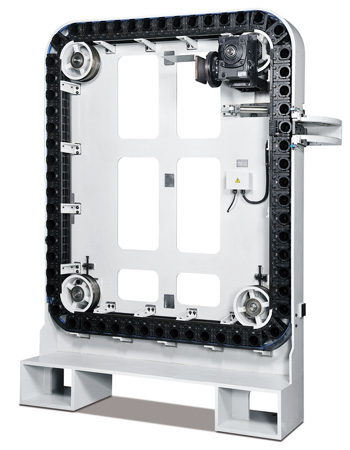

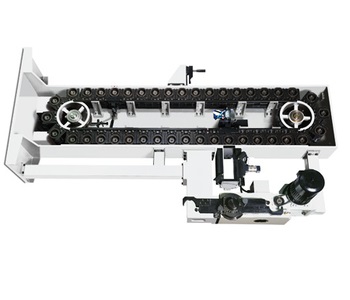

ATC Horizontal #50-Separate Type Pocket

Manufactured by

Features

  •  Steel Pocket with High Stiffness.
  • Spring is made from German Piano Wire.
  • Completely Water Proof Arm to prevent entry of coolant into Arm.
  • Gripper is made as a Separate component for Easy changing of Specification between different pockets (BT/CAT/DIN/HSK).
  • Special design of Rail that overlaps on the wheel to avoid “Chord Raise Effect” and ensure Low Noise and Vibration when the Chain is in Motion.
  • Shifter uses Linear Guides and “Rack and Pinion Mechanism” to shuttle the pocket from Chain to the Tool Change Position.
  • The Tool pocket is shuttled from the Magazine to the Tool Change position by a Carriage driven by a Hydraulic Motor on a Rail Guide.
Make an Enquiry

Description

Separate Type Pocket/Pocket Rotate 90゚ Mechanism Separate Pocket Type/Pocket Sliding Mechanism
Pocket Spec #50 BT/CAT/DIN/HSK100
Tool Capacity 40T/60T 40T/51T/60T
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 125/250 125/250
Max. Tool Weight kg 20
Tool Change Time sec/60hz 2.9
Magazine Speed sec/tool 0.3(Servo)
Tool Management Model Fixed Address
Tool Changing Selection Roller Gear Cam
