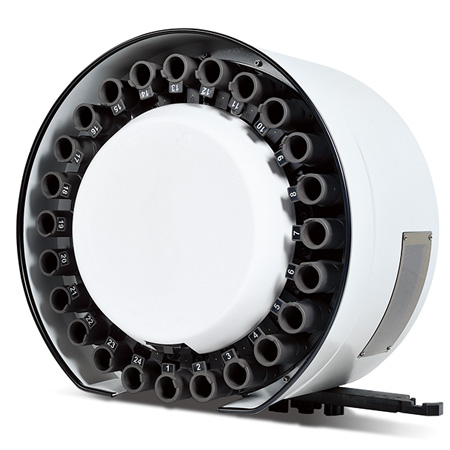

ATC #40 Disk Type

Manufactured by

Features

  • “Anodised – Aluminium Alloy Pocket” with environment friendly.
  •  Anti-Rust and High Stiffness.
  • Spring is made from German Piano Wire.
  • Completely Water Proof Arm to prevent entry of coolant into Arm.
  • Gripper is made as a separate component for Easy changing of Specification between different pockets (BT/CAT/DIN/HSK).
  • High Quality Cylinder for Stable Pot-Tilting.
  • Uses a Counter Balance Valve to hold Heavy Tools in Upright position.
Make an Enquiry

Description

Pocket Spec #40 BT/CAT/DIN HSK40/HSK50/HSK63
Tool Capacity 20T 24T 28T 30T 36T
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 80 95 80 95 68 76 68
Max. Tool Weight kg 8
Tool Change Time sec/60HZ 1.3~1.5
Magazine Speed sec/tool 0.5 0.6 0.6 0.6 0.6 0.6 0.4
Tool Changing Selection Roller Gear Cam
Reference Machines R4DK4 MR4DK MR4AK MR4BK MR4LK MR4CK MR4JK
