ATC #40-Chain Type

Manufactured by

Features

  • “Anodised – Aluminium Alloy Pocket” with environment friendly.
  • Anti-Rust and High Stiffness.
  • Spring is made from German Piano Wire.
  • Completely Water Proof Arm to prevent entry of coolant into Arm.
  • Gripper is made as a separate component for Easy changing of Specification between different pockets (BT/CAT/DIN/HSK).
  • Special design of rail that overlaps on the wheel to avoid ”Chord Raise Effect” and ensure low noise and vibration when the chain is in motion.
Make an Enquiry

Description

Pocket Spec #40 BT/CAT/DIN/HSK40/HSK50/HSK63
Tool Capacity 32T 40T 48T 60T 54T
Pitch mm 76.2
Max. Tool Diameter With Adjacent
Pocket Full / Empty
mm 75/127
Max. Tool Weight kg 8
Tool Change Time sec/60HZ 1.3~1.5
Magazine Speed sec/tool 0.5 0.5 0.5 0.5 0.2(Servo)
Tool Changing Selection Roller Gear Cam

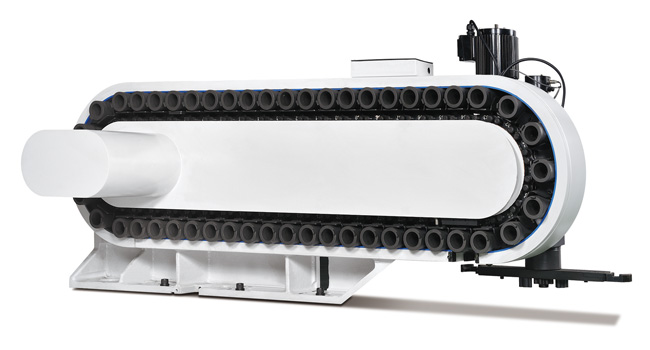

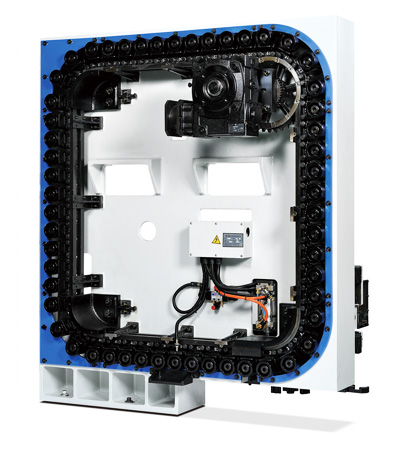

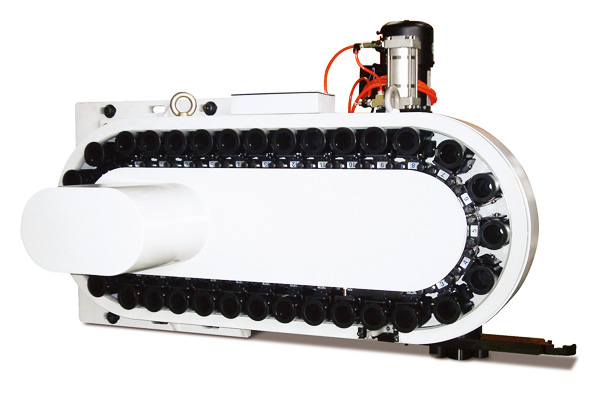

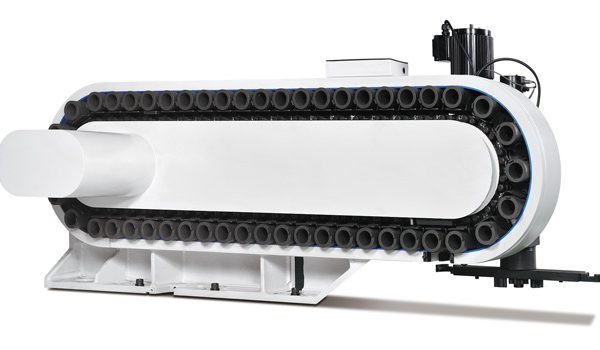

Reference Machines MC4A MC4AQ MC4B MC4BQ MC4DQ MC4FQ C4RBV
